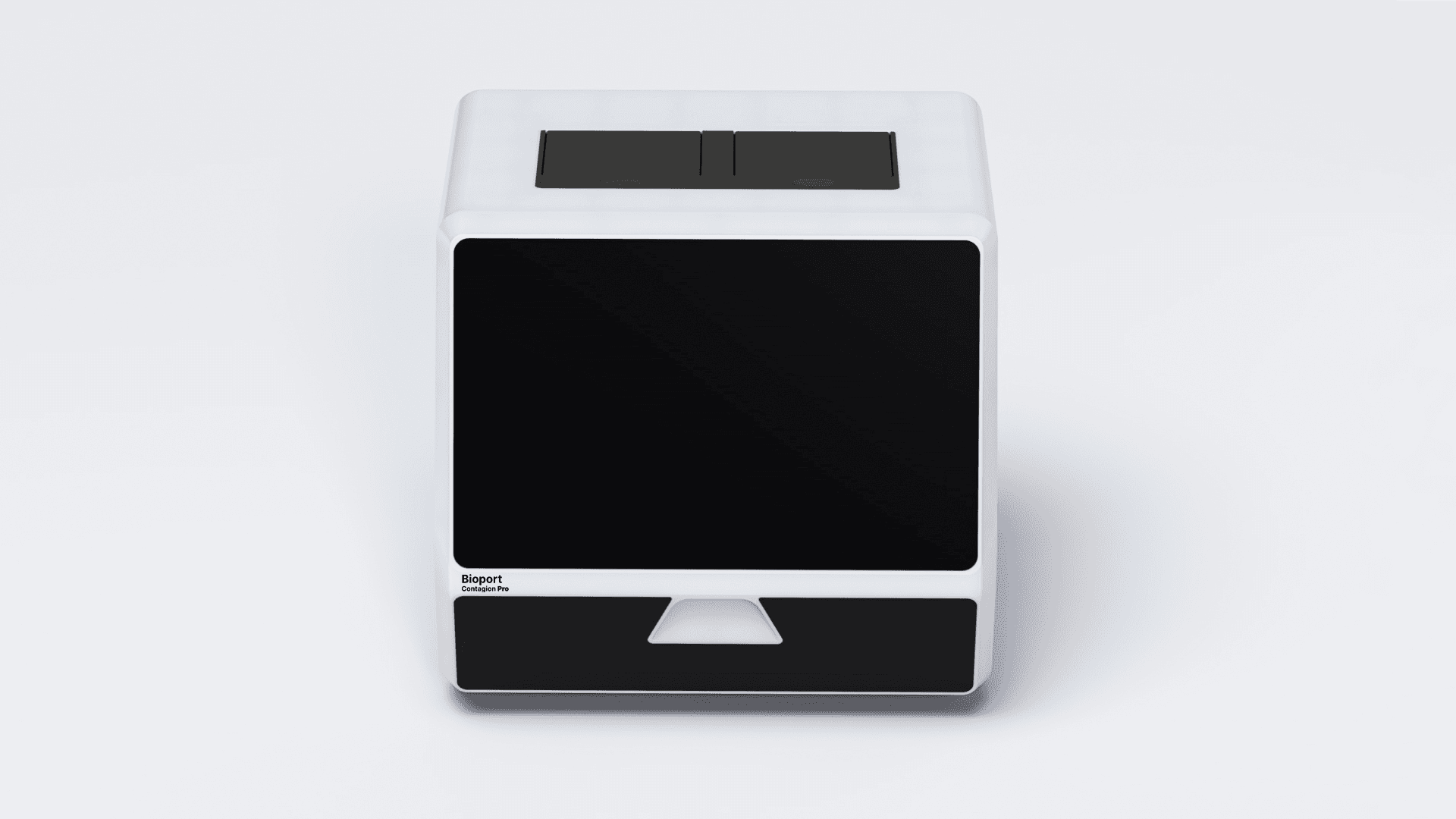

Control
In situ molecular diagnostics for clinics, veterinary practice, farms and food producers. Control answers whether a pathogen is present. Control Pro answers how severe.
Request access
Laboratory grade molecular testing, at the point of care.
Molecular results in clinic
A 16 module Control returns 16 results in a single cycle. No send out, no reference laboratory, no waiting days for an answer.
Any species, no exceptions
Equine, canine, feline, avian, swine, bovine, ovine, aquaculture, exotics and human. If it is biological, an assay can be built for it from scratch in six weeks.
Two steps, no pipetting
Transfer the sample into the cartridge and insert it. The QR code carries assay identity, program and lot.
No cold chain
Vitrified reagents stored 2 to 30 °C and validated for ambient transport to 30 °C for 15 days.
New assays in six weeks
A fixed cartridge architecture means a new validated target in six weeks. If the pathogen matters to you and is not on the menu, it can be.
Antibiotic resistance
Control Pro reads resistance markers alongside the pathogen, so treatment is chosen on genotype rather than guessed, and stewardship is measurable.
Population surveillance
Every instrument is IoT connected and reports de-identified results into a territory surveillance dashboard.
Two instruments. One cartridge architecture.
Control answers whether a pathogen is present. Control Pro answers how severe, and across up to 24 targets at once. Both run the same sealed single use cartridge, and both are operated in two steps at the instrument.
| Parameter | Control® | Control® Pro |
|---|---|---|
| Classification | Point of care molecular analyser | Point of care molecular analyser, multiplex and quantitative |
| Amplification | Cross priming amplification, isothermal, real time fluorescence | Fluorescence real time PCR |
| Result type | Qualitative | Quantitative. Viral load and resistance markers |
| Samples per run | Up to 16, parallel | Up to 32, parallel |
| Results per hour | 10 to 20 | 20 to 27 |
| Time to result | 49 to 95 min by assay. Equine 57 to 62 min. Foodborne 49 min | 70 to 95 min by panel. 24 target panel 72 min |
| Targets per cartridge | 1 to 2 | Up to 24 |
| Configurations | 4, 8 and 16 module | Up to 32 position |
| Menu | 71 assays across all species | Multiplex panels including ASFV, PRRSV, PEDV, FMDV, mastitis |
| Display | 10.4 in touchscreen | 13.3 in touchscreen |
71 assays, and counting.
Every assay runs on the same cartridge and the same instrument. A new validated target takes six weeks, so the menu grows with the pathogens you actually face.
Equine
- Strangles (S. equi)
- Equine influenza
- EHV-1 / EHV-4
- Rotavirus A / B
- Clostridium difficile
- Salmonella spp.
- Lawsonia intracellularis
Canine & feline
- Parvovirus
- Distemper
- Canine influenza
- Feline leukaemia
- FIV
- Giardia
- Leptospira spp.
Swine
- ASFV
- PRRSV
- PEDV
- Classical swine fever
- Mycoplasma hyopneumoniae
- Swine influenza A
Ruminant & poultry
- FMDV
- Bovine viral diarrhoea
- Mastitis panel
- Johne’s disease
- Avian influenza
- Newcastle disease
- Mycoplasma gallisepticum
Foodborne & environmental
- Salmonella spp.
- Listeria monocytogenes
- E. coli O157:H7
- Campylobacter spp.
- Norovirus GI / GII
- Legionella pneumophila
Resistance markers
- mecA / MRSA
- vanA / vanB
- blaCTX-M (ESBL)
- blaKPC / NDM
- tetM
- ermB
Representative menu. Contact the team for the current assay list and species coverage.
Your results stay yours.
Every instrument holds 200,000 records on the device and connects directly to the Wallace app. Administrator and operator roles carry per user permissions on export and print, so a result leaves the instrument only when you say so.
Surveillance reporting is de-identified. Territory level disease monitoring runs alongside individual case diagnosis without exposing the patient, the herd or the producer behind the sample.
Where data cannot leave the site at all, Wallace deploys a Silicon Cortex datacentre on your premises. It runs localised AI models against your own results, so storage and inference both stay inside your walls, under your jurisdiction. Sovereignty becomes a matter of physical location rather than policy.
Every figure published.
Analytical performance
- Specificity
- 100% on 64 of 71 assays, 98 to 99% on remainder
- Positive detection rate
- 100% on majority, 95 to 99% on remainder
- Limit of detection
- Control 500 to 2000 copies per test, majority 1000. Control Pro published at 100 copies per mL on ASFV
- Repeatability
- CV under 3%
- Precision
- CV under 5%
- Temperature accuracy
- ± 0.5 °C
- Fluorescence detection
- 5 s or less
- Dynamic range
- 4 orders of magnitude
- Controls
- Internal control every reaction, external positive and negative supplied
Workflow
- Operator steps at instrument
- 2. Load sample to cartridge, insert cartridge
- Sample preparation
- Under 2 min. Centrifuge step on a subset of whole blood and effusion assays
- Pipetting
- Not required. Sample supplied in premeasured extraction buffer
- Assay selection
- Automatic from cartridge QR code
- Laboratory space
- Not required. Bench top, 100 mm clearance each side
- Contamination control
- Sealed single use cartridge
Hardware and data
- Operating system
- WallaceOS
- Record storage
- 200,000
- Data export
- NB-IoT, Wallace application, LIS, USB and USB thermal printer
- User access control
- Administrator and operator roles, per user permissions on export and print
- Sample identification
- Integrated QR and barcode scanner
- Compliance
- IEC 61010-1, 61010-2-101, 61010-2-010, 61010-2-081, 61326-1, 61326-2-6
Logistics and environment
- Cartridge storage
- Vitrified reagents across all formats. 2 to 30 °C
- Shelf life
- 6 to 12 months by assay
- Transport
- Ambient. Validated to 30 °C for 15 days. No cold chain
- Operating environment
- 5 to 40 °C, up to 95% RH non condensing, to 4000 m
- Power
- 100 to 240 V, 50/60 Hz. 425 VA (4), 850 VA (8), 1700 VA (16)
- Dimensions W × D × H
- 300 × 470 × 390 mm (4). 460 × 470 × 390 mm (8). 900 × 470 × 390 mm (16)
- Mass
- 21 kg (4), 33 kg (8), 62 kg (16)
- Warranty and service life
- 12 months, 5 year service life, operator training included
Figures from the Control instrument operator manual, assay datasheets and the Control Pro platform specification.
